Kettle

1. Overview

Kettle (full name Pentaho Data Integration, referred to as PDI) is an open-source ETL (Extract, Transform, Load) tool designed for data integration, data cleansing, data migration, and data analysis. It simplifies complex data processing workflows through a visual interface and is widely used in data warehouse construction, business intelligence (BI), and big data scenarios.

2. Prerequisites

To connect IoTDB with PDI, the following preparations are required:

• IoTDB >= V2.0.5.1, which has been deployed and is running normally.

• PDI has been downloaded and installed, and is running normally.

3. Connect IoTDB with PDI

1. Start the IoTDB service

2. Download the JDBC driver and add it to the lib directory under the PDI installation folder

   • Click the following URLs Download Address 1 or Download Address 2, select the corresponding version of the Jar package, and download the package with the suffix jar-with-dependencies.jar

3. Start the PDI service and configure the database connection

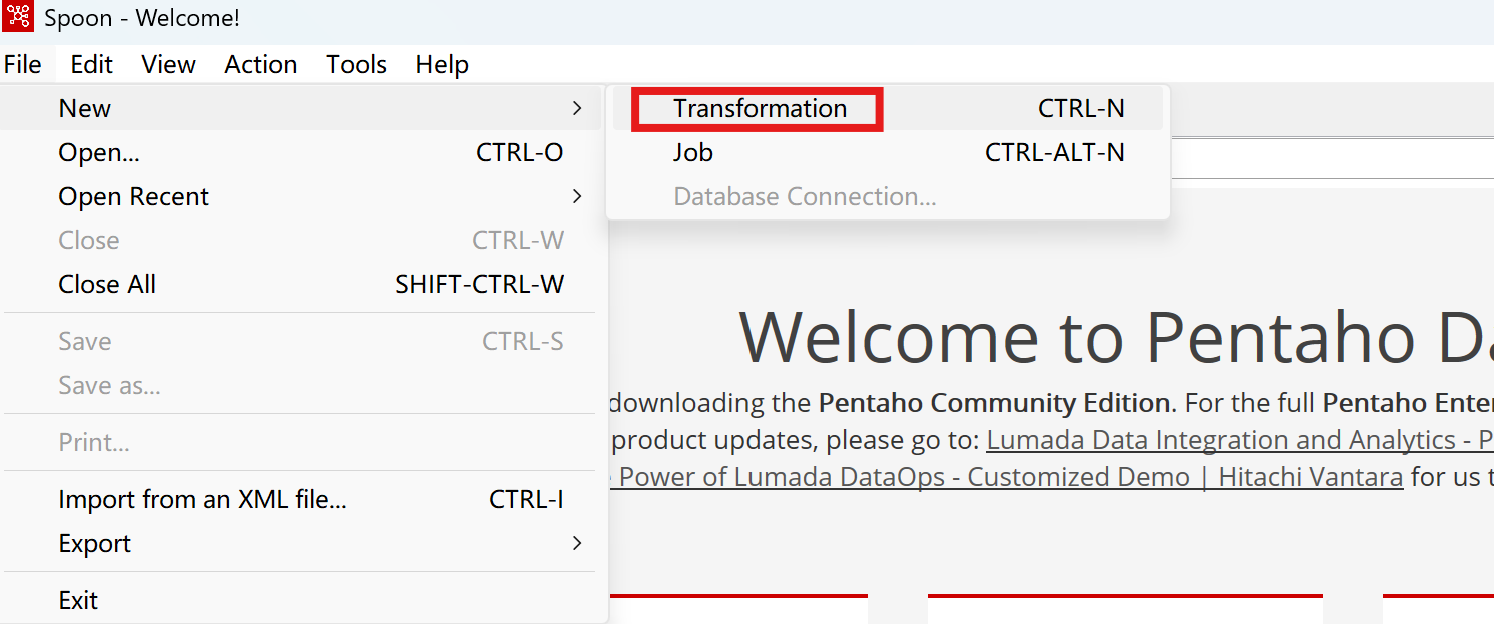

   • Create a new transformation

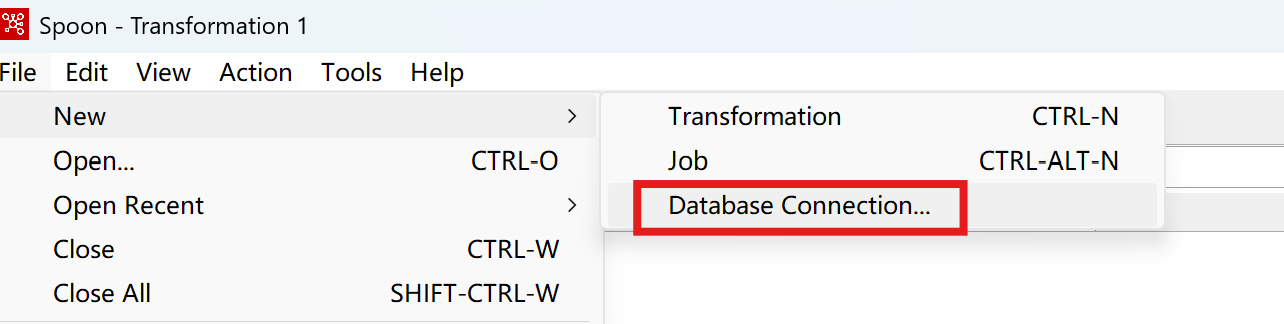

   • Create a new database connection

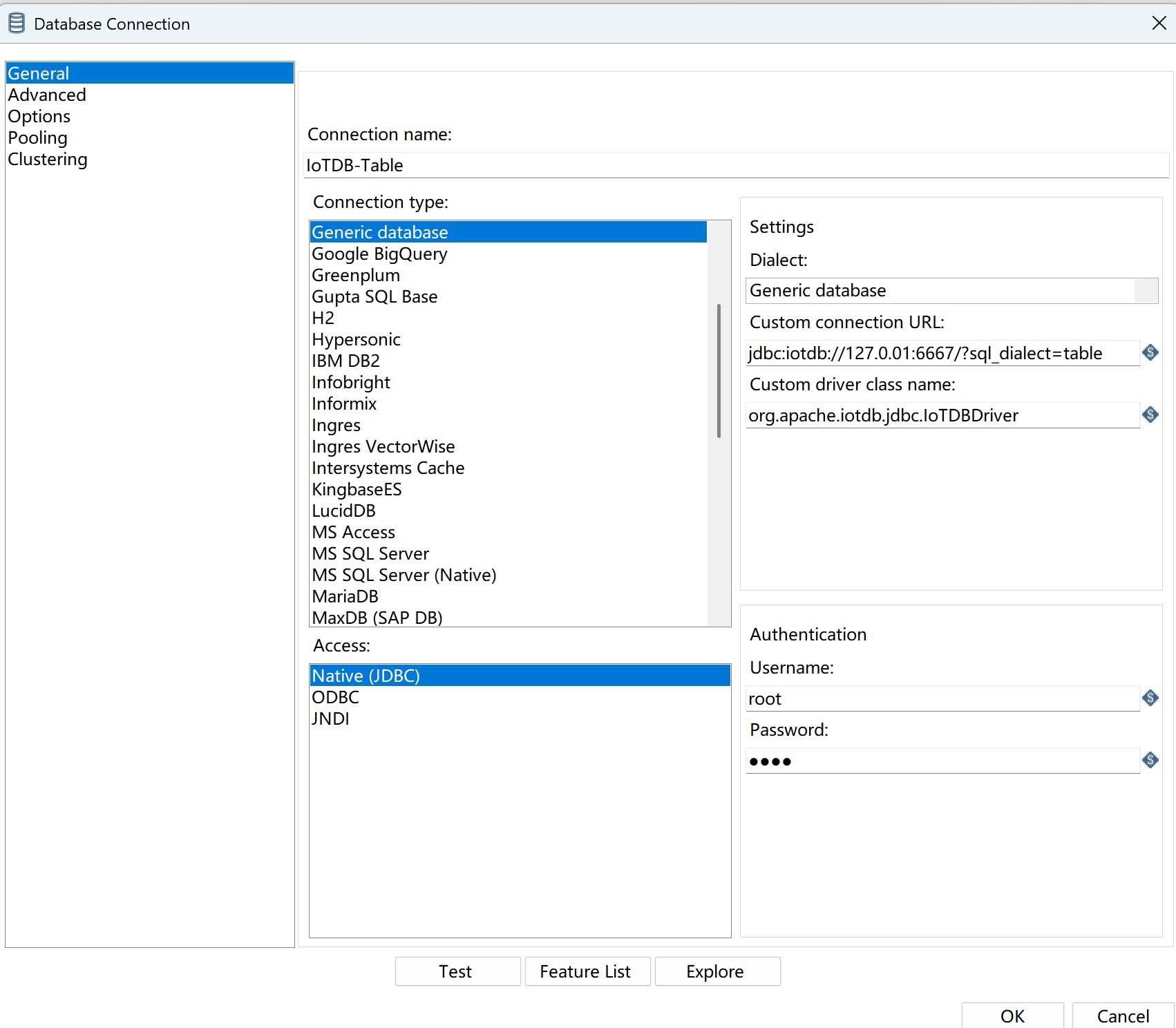

   • Edit the database connection

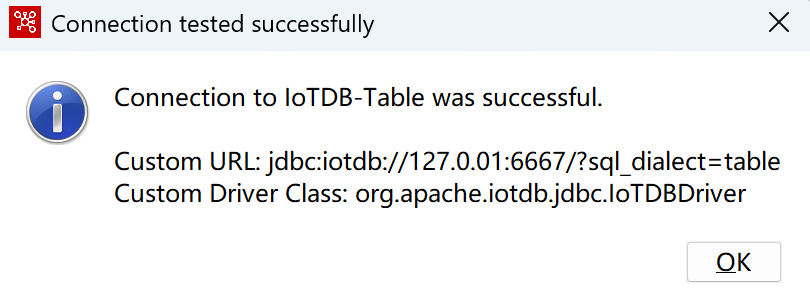

   • Test the connection



4. You can now use IoTDB through PDI

4. Usage Steps

To insert data, you need to use Execute SQL Script. The following steps simulate inserting data into IoTDB using PDI with JSON input.

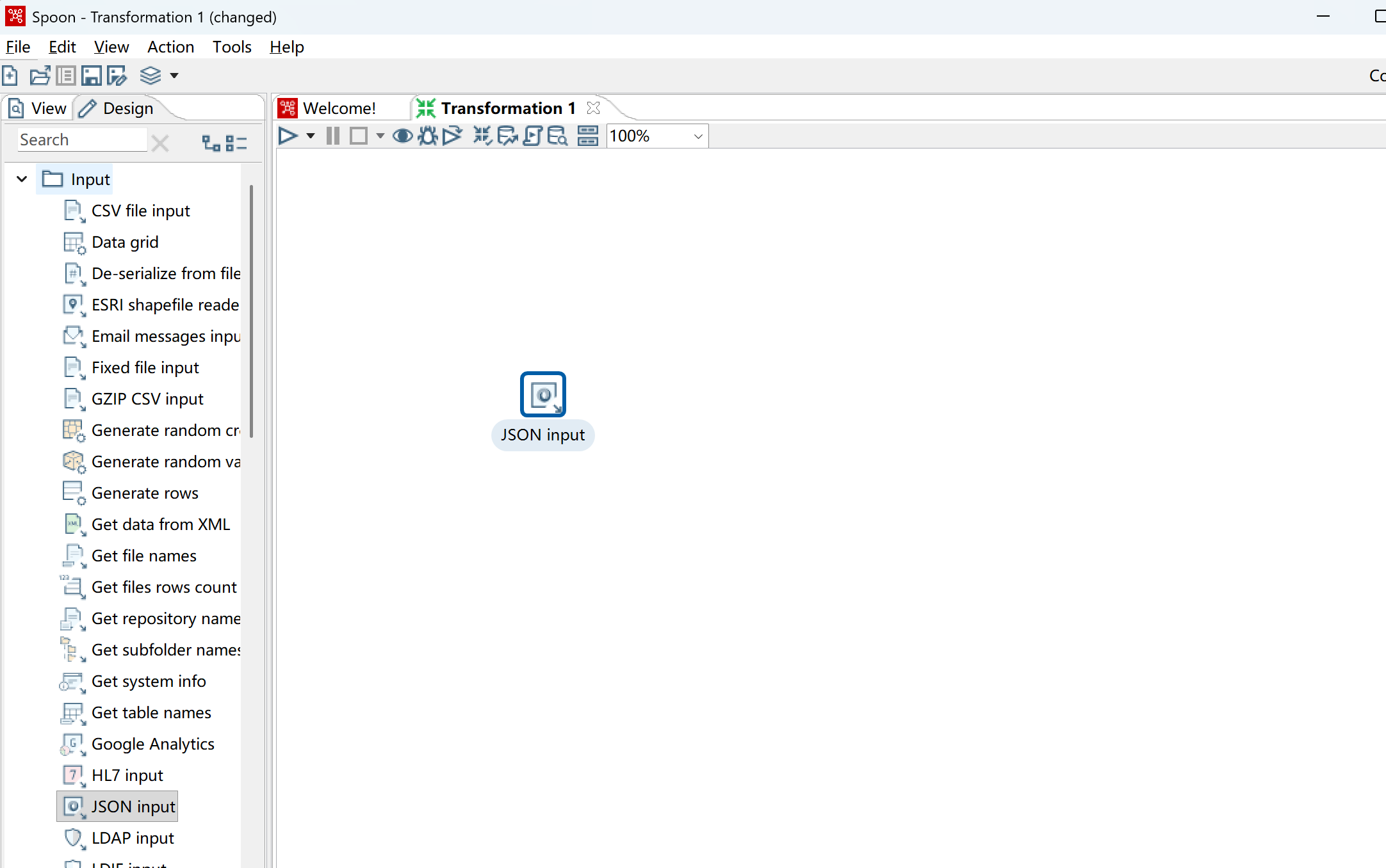

1. Add JSON input, click Input in the Core Objects on the left, select JSON input, and drag it into the transformation on the right.

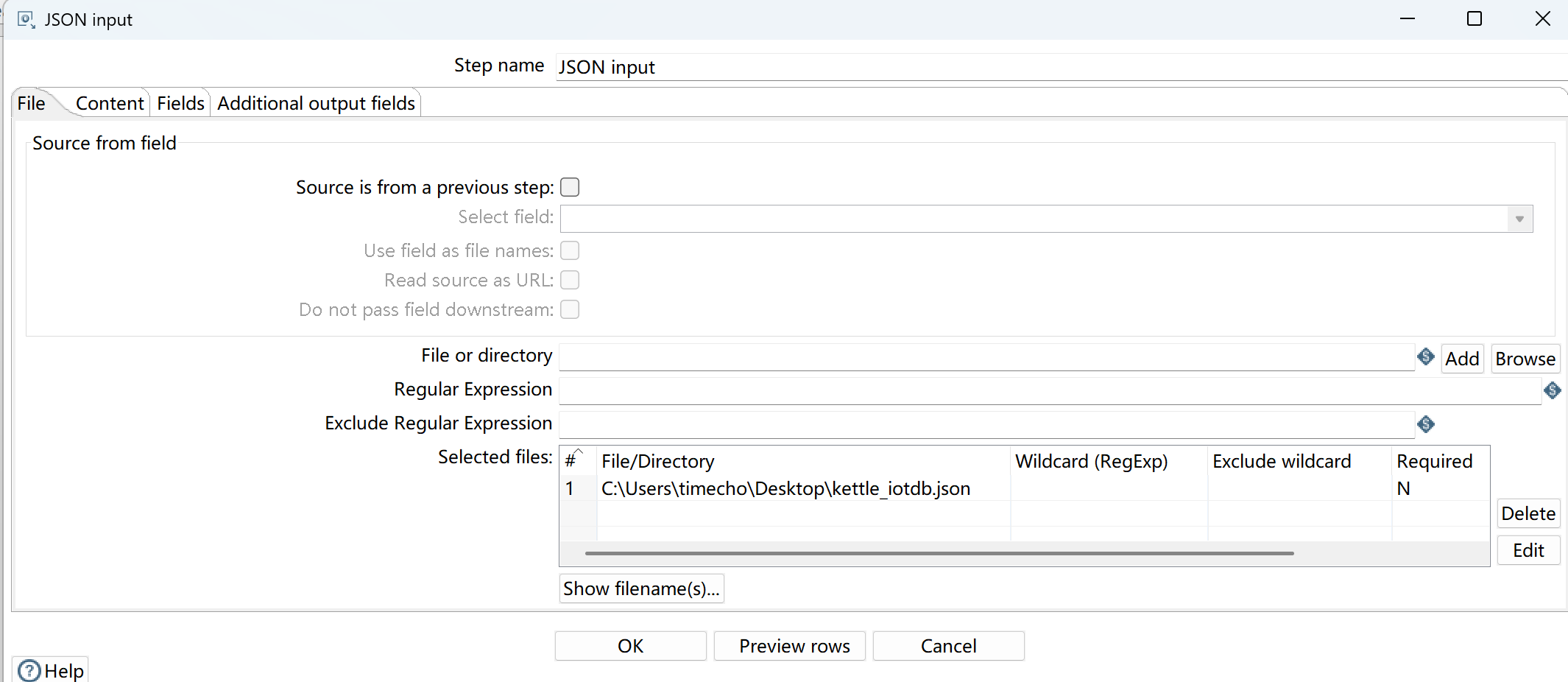

2. Double-click the dragged JSON input and add the JSON file. In the Files tab - File or directory field, fill in the path of the JSON file and click Add.

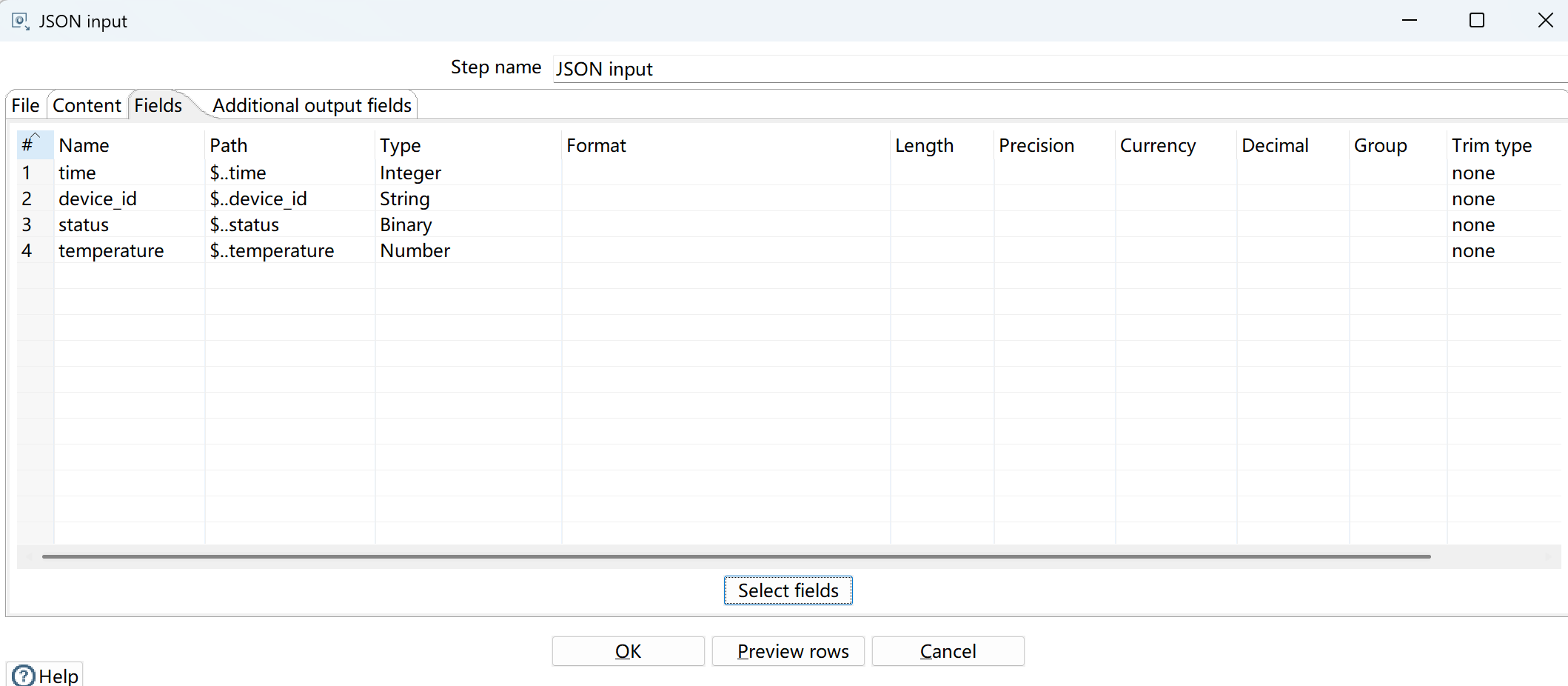

3. Click Select fields in the Fields tab and select the rows to import.

4. Adjust the data types appropriately according to the field requirements of the target database. For example, replace Boolean type with Binary, and Float type with Number.

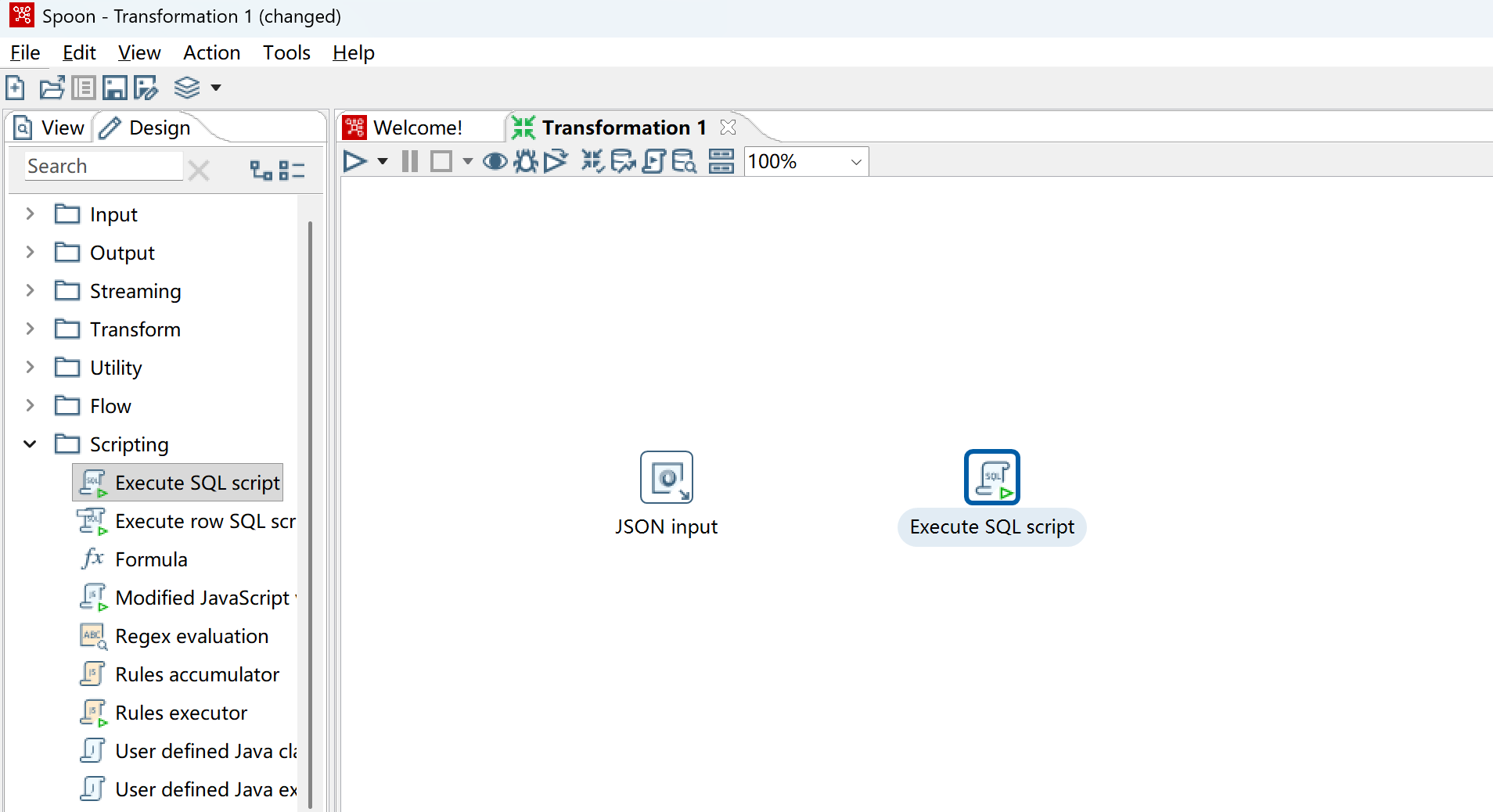

5. Add Execute SQL Script, click Script in the core objects on the left, select Execute SQL Script, and drag it into the transformation on the right.

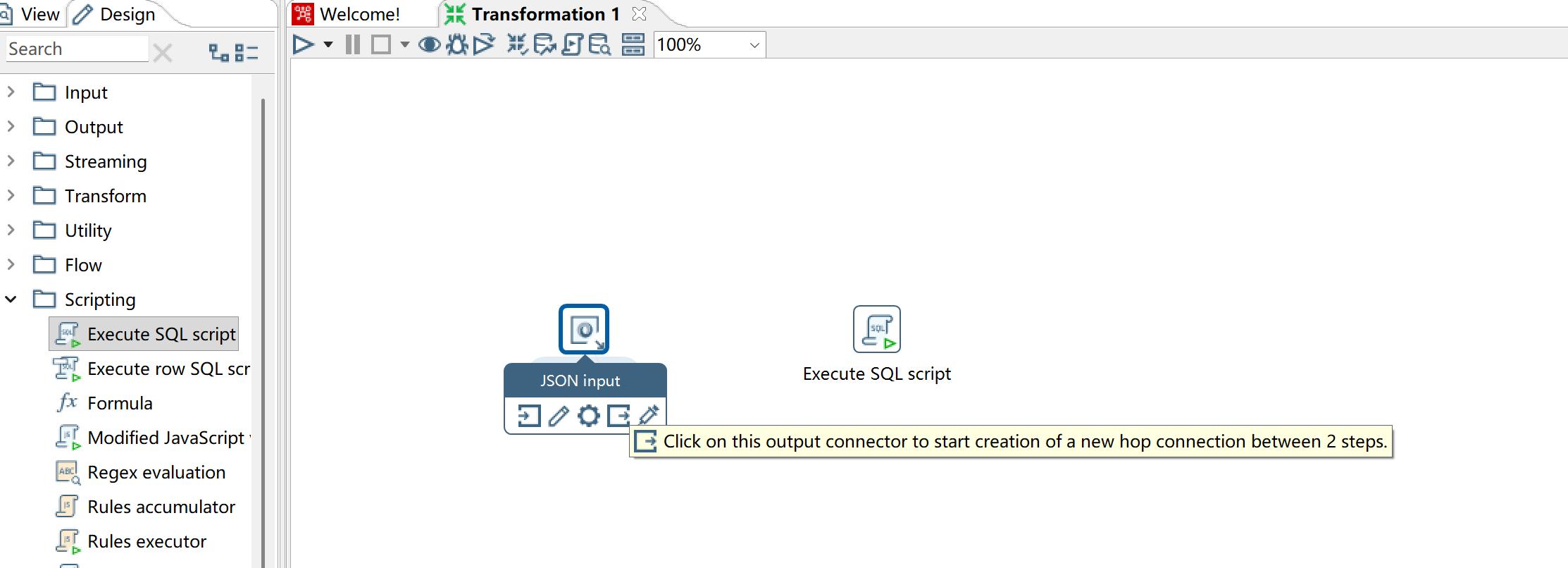

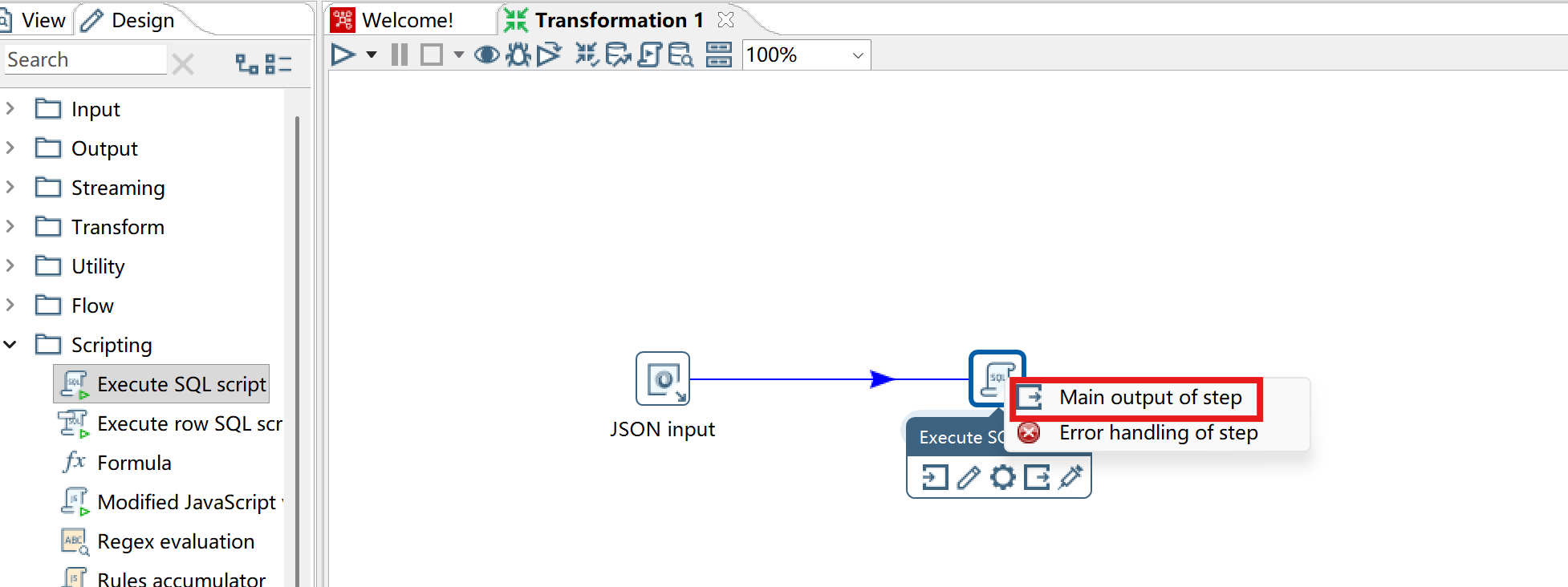

6. Hover the mouse over JSON input, select the fourth icon, click and point to Execute SQL Script, and select Main output step.

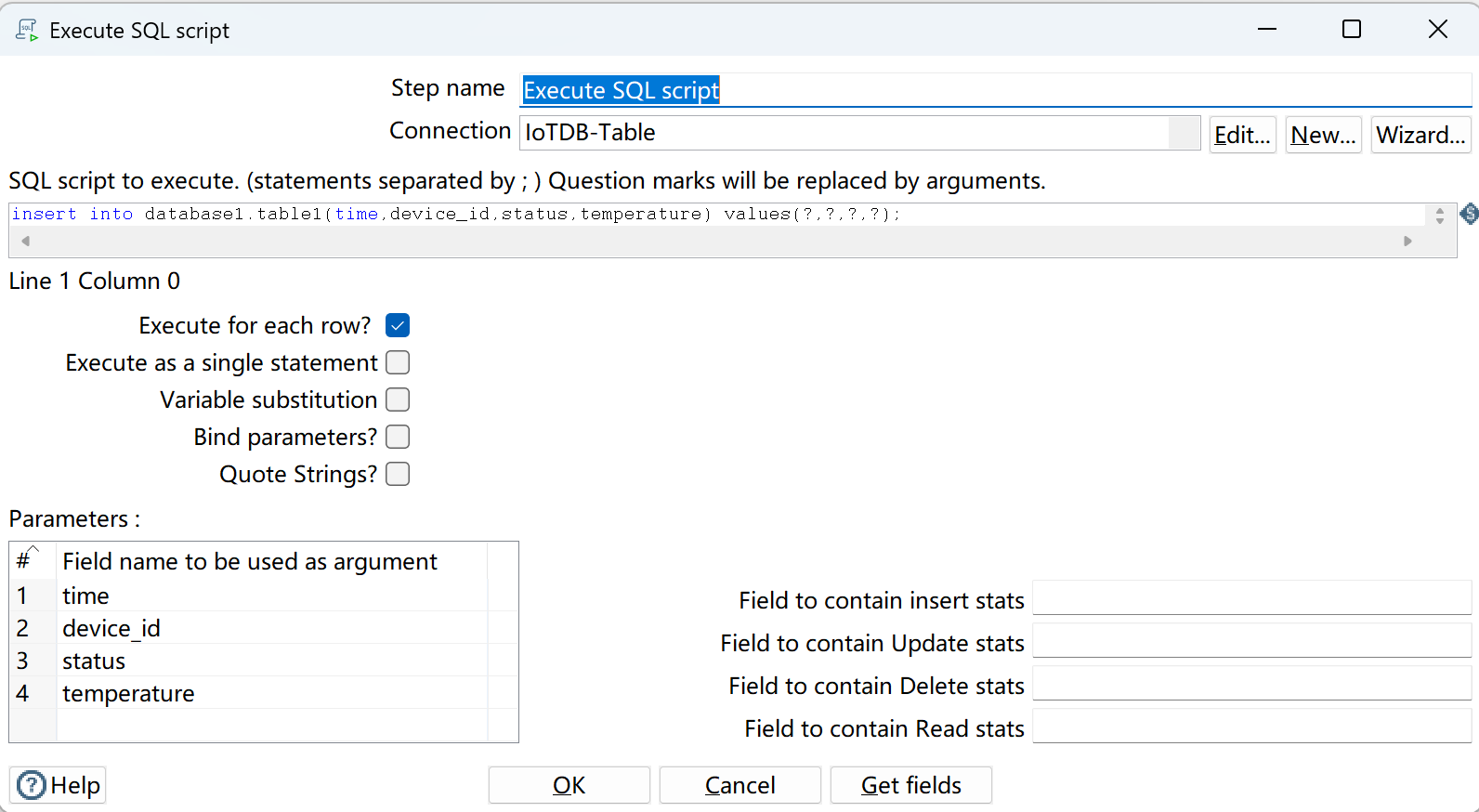

7. Double-click Execute SQL Script and add SQL statements, check Execute for each row, and click Get fields.

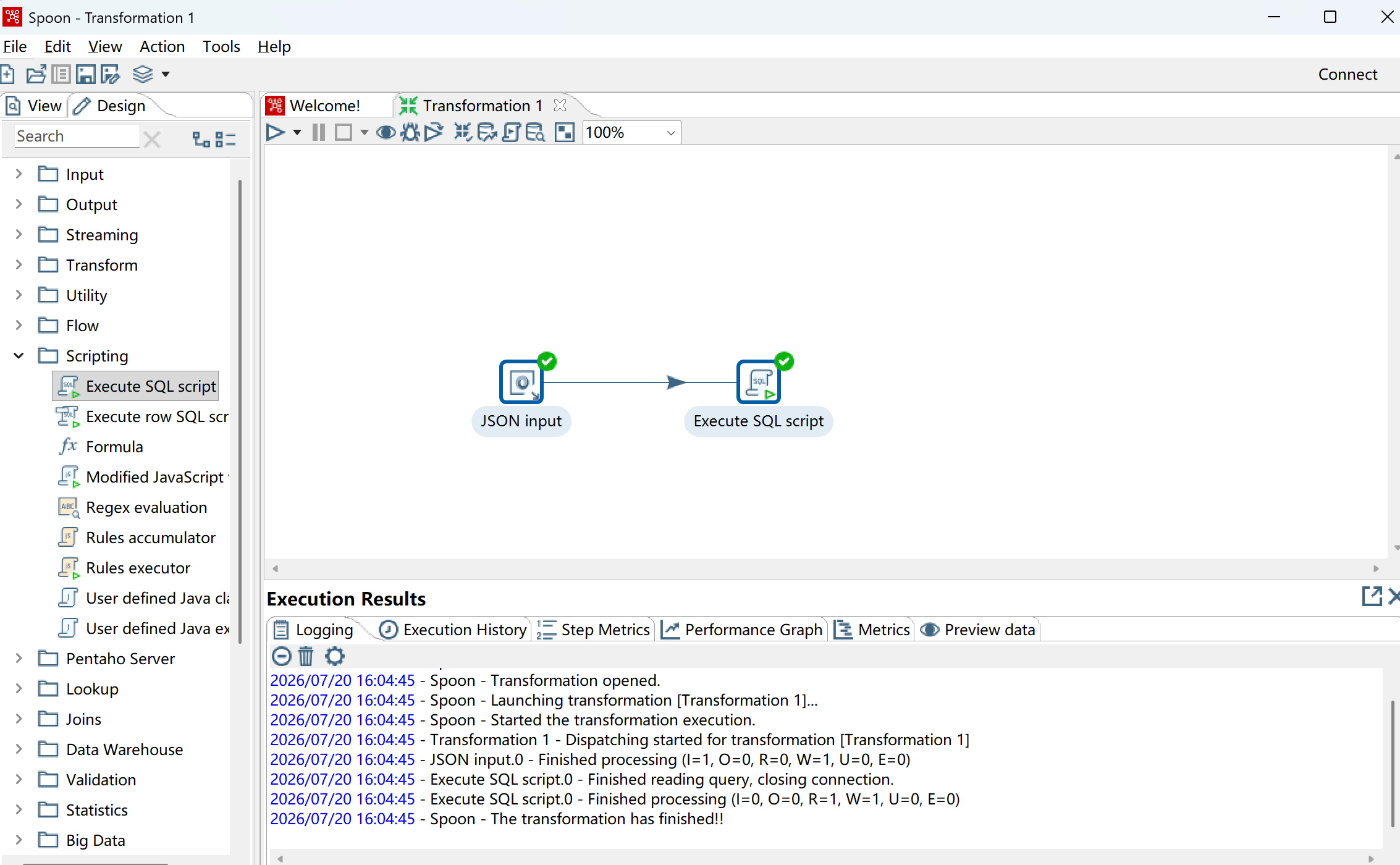

8. Select JSON input and Execute SQL Script, then click Run or press shortcut key F9.

9. Verify the write result through IoTDB Cli

IoTDB:database1> select * from table1
+-----------------------------+------+--------+---------+--------+-----------+-----------+--------+------+------------+
|                         time|region|plant_id|device_id|model_id|maintenance|temperature|humidity|status|arrival_time|
+-----------------------------+------+--------+---------+--------+-----------+-----------+--------+------+------------+
|1970-01-01T08:00:01.000+08:00|  null|    null|      100|    null|       null|       31.8|    null| false|        null|
+-----------------------------+------+--------+---------+--------+-----------+-----------+--------+------+------------+
Total line number = 1
It costs 0.189s
